Test 3: Continuity of Ring Circuits — Proving the Circuit Is Complete

Introduction

Not all circuits are radial.

Some installations include ring circuits, and when they do, they must be tested correctly.

This test answers a simple but important question:

👉 Is the ring circuit electrically complete from end to end?

Because if the ring is broken:

• Load sharing is lost
• Conductors can overload
• Protection assumptions fail

And the installation becomes unsafe.

According to SANS 10142-1, both ends of the live conductors must be removed, separated, and tested for continuity, and then reconnected correctly after testing.

🧠 1. Foundation (Understanding): What Are We Actually Testing?

At this level, understand what a ring circuit is:

👉 A circuit that starts at the DB, loops through points, and returns back to the same point.

So instead of:

➡️ Start → End (radial)

You have:

➡️ Start → Loop → Back to Start

🔑 What This Test Proves

👉 That the ring is not broken
👉 That both ends are correctly connected
👉 That current can flow through the full loop

⚠️ Important Understanding

• This test is often not applicable (N/A)
• Only applies where ring circuits are installed

👉 If there is no ring circuit, you do NOT perform this test

🛠️ 2. Application (Doing): How Must the Test Be Done?

This test is simple—but must be done correctly.

It is NOT about resistance values.

👉 It is about continuity only

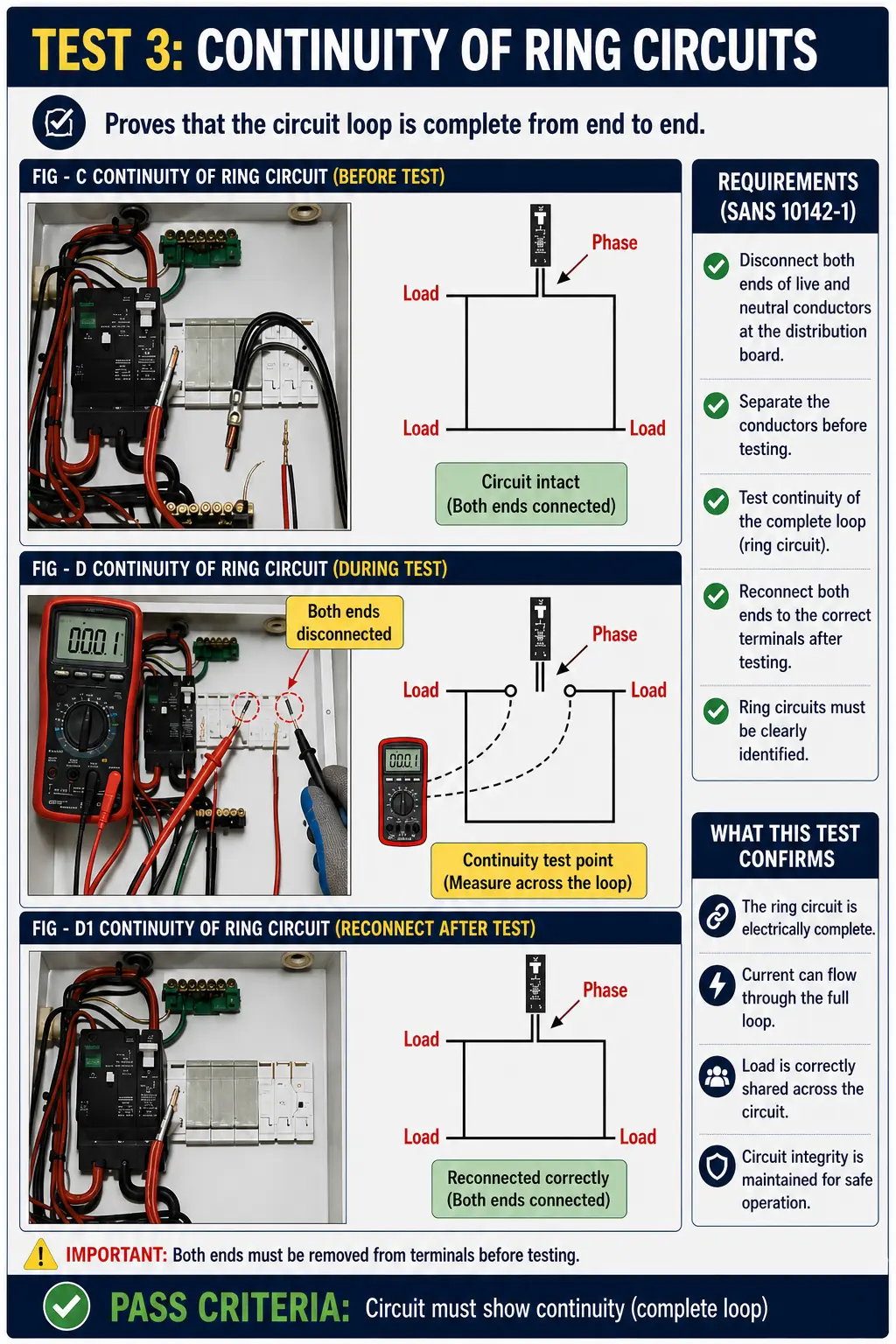

🔧 Correct Method

1. Identify the ring circuit at the DB
2. Disconnect both ends of:
   • Live conductor
   • Neutral conductor
3. Separate the conductors
4. Test continuity of the circuit loop
5. Confirm the circuit is complete
6. Reconnect both ends correctly

⚡ Instruments That Can Be Used

• Multimeter
• Continuity tester
• Beeper function

👉 Unlike previous tests, no specific resistance value is required

⚠️ Critical Requirement

After testing:

👉 Both ends must be reconnected to the same terminal

SANS requires that:

👉 Ring circuits must be clearly identified and properly terminated

⚡ 3. Mastery (Owning Responsibility): What Are the Limitations?

This is where professionals stand out.

A continuity test alone does NOT confirm:

❌ Correct load distribution
❌ Correct conductor sizing
❌ Proper connections at every point
❌ No high resistance joints

🔍 What the Professional Must Ask

👉 Is this circuit actually designed as a ring?
👉 Are both ends correctly terminated?
👉 Are connections secure at all points?
👉 Could there be a partial break?
👉 Is the circuit clearly identified?
👉 Was the circuit modified after installation?

⚠️ Real Risk

If a ring circuit is broken:

• It becomes a radial circuit
• Conductors may be undersized for load
• Overheating can occur
• Protection may not function as intended

⚠️ Common Mistakes

• Not disconnecting both ends before testing
• Testing while still connected to DB
• Forgetting to reconnect conductors
• Mixing up conductors after testing
• Assuming continuity means correct installation
• Not identifying ring circuits properly
• Performing test where it is not applicable

💡 Final Thought

Test 3 is simple—but dangerous if ignored.

Because a ring circuit that is not complete…

👉 Is no longer what it was designed to be.

At TDMI Training, we focus on understanding—not assumptions.

Because the real question is not:

👉 “Did it beep?”

It’s:

👉 “Is this circuit still safe under load?”

✅ The Standard

• Confirm applicability
• Test correctly
• Reconnect properly
• Verify integrity
• Understand the limitations

👉 Because in electrical work…
what you assume can hurt someone.
