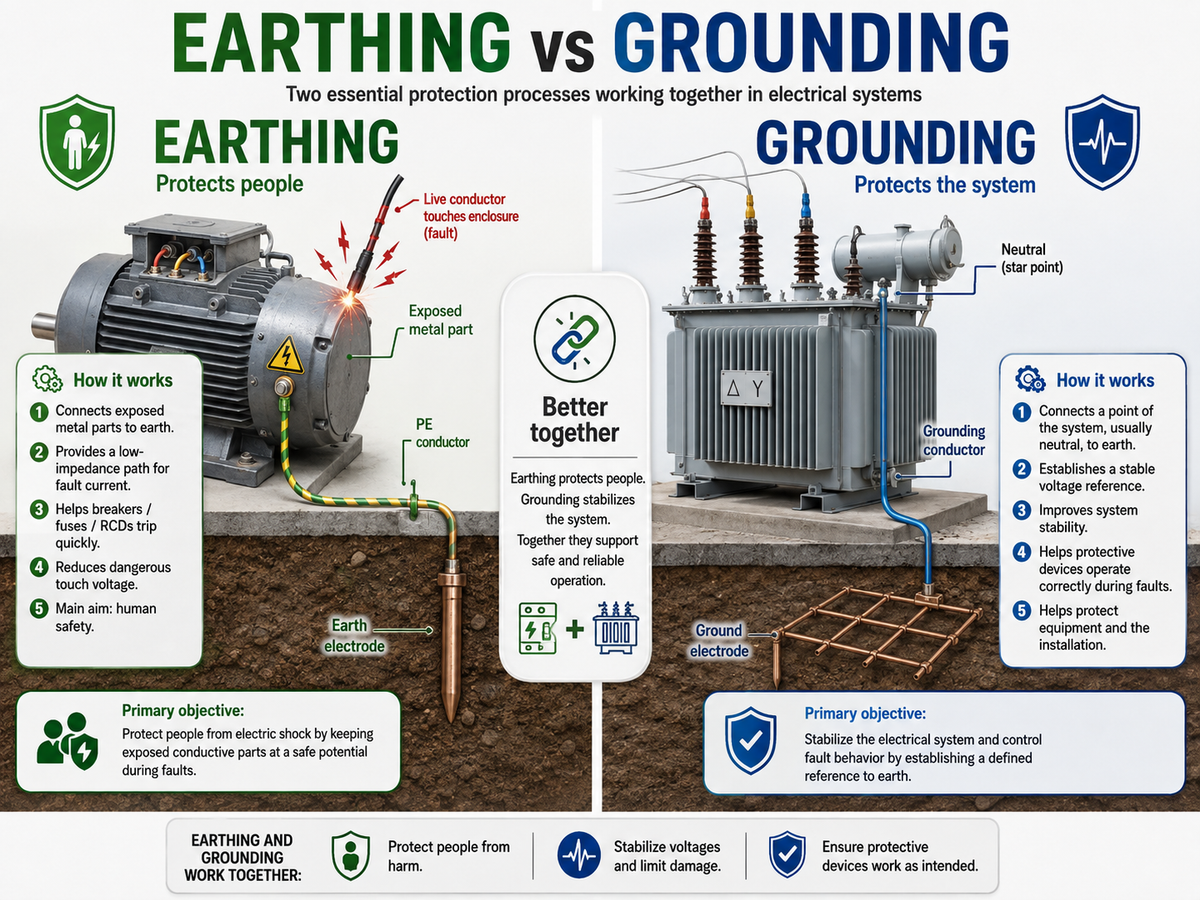

Earthing vs Grounding: Two Different Jobs, One Safe Electrical System

Understanding how protective earthing and system grounding work together to protect people, equipment and the electrical installation

When electricians talk about earthing and grounding, the two words are often used as though they mean exactly the same thing.

In some countries — particularly the United States — grounding is simply the preferred word for what we call earthing. Even IEC terminology recognises “protective grounding” as an alternative term for “protective earthing”.

But there is a very useful technical distinction that helps us understand an electrical installation properly:

Protective earthing is primarily concerned with protecting people from dangerous touch voltages.
System grounding is primarily concerned with controlling and stabilising the electrical system itself.

Neither works completely independently of the other.

A correctly designed electrical installation brings earthing, grounding, bonding and protective devices together as one protection system.

And that is where the subject becomes interesting. ⚡

First, let us define the two concepts

Protective earthing

Protective earthing connects exposed conductive parts of electrical equipment to the protective earthing system.

These are metal parts that should never normally be live, such as:

the metal enclosure of a motor;
a distribution board enclosure;
a metal appliance casing;
cable armour;
metal switchgear;
conductive structures that require protective connection.

The Protective Earth or PE conductor provides a connection between exposed conductive parts and the installation's earthing system. IEC-based guidance describes the PE conductor as part of the bonding connection between exposed and extraneous conductive parts and as a conductor capable of carrying fault current following an insulation failure.

Its purpose is not simply to “send electricity into the ground”.

Its real purpose is to ensure that when something goes wrong, dangerous voltage does not remain indefinitely on something that a person can touch.

System grounding

System grounding is slightly different.

Here we are deliberately establishing the relationship between the electrical supply system and earth.

A common example is the intentional connection of the transformer star point or neutral point to earth.

This establishes a reference for the electrical system.

System grounding can therefore help:

establish predictable conductor-to-earth voltages;
control overvoltages;
provide a defined earth-fault path;
allow protective devices to recognise faults;
improve system stability;
manage transient and lightning-related voltages;
assist with insulation monitoring and fault location;
influence electromagnetic compatibility and interference.

The grounding arrangement selected therefore affects much more than electric shock protection. It affects the behaviour of the entire network during normal operation and during faults.

Think of it this way

We could simplify the relationship as follows:

Earthing asks:

“What happens to the person if this metal part accidentally becomes live?”

Grounding asks:

“How will the electrical system behave when a conductor develops a fault to earth?”

The answers are connected.

Because when the system is grounded correctly and the exposed conductive parts are properly earthed, a fault can create the conditions necessary for the protective device to disconnect the supply.

That is the greater protection strategy.

A metal appliance gives us the perfect example

Imagine a metal electrical appliance supplied at 230 V.

Inside the appliance, the insulation on the live conductor fails.

The live conductor touches the metal casing.

Without protective earthing, the casing could now sit at approximately phase potential.

Nothing necessarily tells the circuit breaker that there is a problem.

The appliance may continue operating.

Then a person touches the enclosure while simultaneously being in contact with earth or another conductive part.

Their body can become part of the circuit.

That is exactly what we do not want.

Now add protective earthing

The metal enclosure is connected to the PE conductor.

When the live conductor touches the enclosure, current has a deliberately constructed fault path.

Instead of waiting for a human being to complete the circuit, the installation creates an electrical fault condition that the protection system can detect.

The objective becomes:

Fault occurs → fault current flows → protective device recognises fault → supply disconnects → dangerous touch voltage is removed quickly.

IEC-based electrical safety guidance describes fault protection in exactly this broader way: exposed conductive parts are earthed and an automatic disconnection system removes the affected supply within the required safety conditions.

So the PE conductor is not just a piece of green-and-yellow copper.

It is part of the fault-clearing circuit.

One of the biggest misunderstandings: “The earth absorbs the electricity”

This deserves attention.

Many people imagine an earth conductor as a pipe through which unwanted electricity flows into the soil and disappears.

That is not an accurate description of many electrical installations.

Electric current requires a complete circuit back to its source.

In a TN-type system, for example, an earth fault may travel:

Phase conductor
↓
Faulted metal enclosure
↓
Protective earth conductor
↓
Earthed source point / neutral system
↓
Transformer winding
↓
Back to the phase conductor

The soil itself may not be the primary fault-current return path.

The important factor is the fault loop impedance.

If that loop has sufficiently low impedance, a high enough current can flow for the appropriate overcurrent protective device to operate rapidly. In TN systems, earth faults effectively create a low-impedance fault path back towards the source.

This is why simply driving an earth spike into the ground does not automatically make an installation safe.

Grounding gives the system its reference

Now consider the supply transformer.

A typical three-phase transformer secondary may have a star point.

If that star point is intentionally connected to earth, the system now has a defined relationship to earth.

Instead of the electrical network floating unpredictably relative to earth, its phase-to-earth voltages can be controlled.

This is one of the major purposes of system grounding.

It provides a reference.

And once the source and protective system have the correct relationship, earth faults become much more predictable.

That predictability allows engineers to design the protective devices around the expected fault behaviour.

Earthing and grounding meet at the fault

This is where the two concepts finally come together.

Imagine again that a live conductor touches a metal motor housing.

Earthing does its job

The motor casing is connected to PE.

The fault therefore does not simply leave the enclosure sitting dangerously live.

Grounding does its job

The electrical supply has a defined relationship to earth and the protective network.

A fault circuit can therefore be established.

Protection does its job

The resulting fault condition is detected by the appropriate circuit breaker, fuse, RCD or other protective device.

Bonding does its job

Accessible conductive parts are kept as close as practicable to the same electrical potential, reducing hazardous potential differences.

Together they create what we actually want:

A fault becomes a controlled electrical event rather than a human safety event.

Bonding: the third part that cannot be ignored

While discussing earthing and grounding we also need to mention bonding.

Bonding and earthing are related, but they are not identical.

ECA(SA), when discussing SANS 10142-1 principles, highlights this distinction clearly.

An earth continuity conductor connects the consumer's earth terminal to exposed conductive parts for the purpose of earthing those parts and carrying fault currents.

A bonding conductor, however, connects conductive parts together with the object of bringing them to the same electrical potential.

That difference is extremely important.

Consider two metal objects that a person can touch simultaneously.

If one is sitting at 100 V relative to earth and the other is sitting at 0 V, the person bridging those objects may experience a dangerous potential difference.

Bonding attempts to minimise that difference.

Therefore:

Earthing provides the protective connection.

Bonding controls potential differences.

Grounding establishes the electrical system's relationship to earth.

Protective devices disconnect the fault.

They are four parts of the same safety philosophy.

Different grounding arrangements behave differently

This is why electricians must understand TN, TT and IT systems.

They are not merely letters that have to be memorised for an examination.

They describe how the supply is connected to earth and how exposed conductive parts are connected relative to that supply.

And that determines how an earth fault behaves.

TN systems

In a TN arrangement, exposed conductive parts are connected through protective conductors to the earthed point of the power supply.

When a phase conductor faults onto an earthed enclosure, the resulting low-impedance loop can produce substantial fault current.

This allows circuit breakers or fuses — and RCDs where applicable — to disconnect the faulty circuit.

The effectiveness of the system therefore depends heavily on:

continuity of the protective conductor;
correct conductor sizing;
low enough fault-loop impedance;
appropriate protective-device characteristics;
correct bonding.

A beautiful earth electrode with a broken PE conductor will not save the installation.

The entire fault path matters.

TT systems

A TT system behaves differently.

The exposed conductive parts of the installation are connected to a local earth electrode while the source neutral is earthed separately.

The fault path therefore includes the installation earth electrode, the soil and the source earthing arrangement.

Because that path can have considerably greater resistance, the earth-fault current may be too small to operate a conventional overcurrent device quickly enough.

For this reason, RCD protection becomes fundamental in a TT system.

Once again we see why understanding the grounding arrangement matters.

The circuit breaker rating alone does not tell us whether fault protection will work.

IT systems

An IT system introduces another philosophy.

The supply is either isolated from earth or connected to earth through relatively high impedance, while exposed conductive parts remain earthed.

During the first insulation fault, the fault current can be very small and the installation may continue operating.

That is valuable where continuity of supply is critical.

However, the first fault must be detected and dealt with because a second fault can create a dangerous condition requiring disconnection.

Hospitals, industrial processes and certain critical installations demonstrate why grounding philosophy is not simply about putting a wire into the soil.

It is about engineering the behaviour of the network under fault conditions.

Why the neutral-to-earth connection matters so much

One of the most misunderstood areas in modern electrical installations is neutral-to-earth bonding.

People sometimes see a voltage between neutral and earth and decide:

“I'll simply bridge neutral and earth.”

That can create a very dangerous installation.

The neutral and PE conductors have different functions.

Neutral normally carries load current.

Protective earth should not be used as a normal load-current conductor.

Creating additional neutral-to-earth connections downstream can cause current to flow through PE conductors, bonding paths and conductive structures.

It can also interfere with RCD operation and create unexpected touch voltages.

South African ECA technical guidance quoting SANS 10142-1 requirements specifically warns against a permanent neutral-earth connection downstream of the point of control except where the standard makes specific provision for it.

This has become particularly important with:

inverters;
UPS systems;
generators;
hybrid solar installations;
changeover systems;
island-mode operation.

Alternate supplies have made grounding knowledge essential

Twenty years ago, many electricians predominantly worked on installations supplied from one utility transformer.

Today the installation might have:

Grid → inverter → battery → generator → PV → essential-load DB

The source of supply can change several times during a single day.

That raises an important question:

Where is the system grounding reference when the original mains supply is disconnected?

An inverter operating in parallel with the grid may rely on the supply network's neutral-earth relationship.

But when it enters island mode, the network conditions can change completely.

The protection system still has to operate correctly.

ECA(SA)'s guidance on alternate supplies explains that suitable arrangements must ensure correct protective operation irrespective of the source of supply, and that where required the neutral-earth bond must be created during alternate/island operation and removed when the mains arrangement requires it.

This is why an inverter installation cannot be approached as:

“Connect live, neutral, earth and switch it on.”

The electrician has to understand the earthing arrangement in every operating mode.

Grounding also protects equipment

Protecting people remains the highest priority, but the grounding arrangement also contributes significantly to equipment protection.

A properly engineered system helps control:

Overvoltages

Without a defined earth reference, conductor-to-earth voltages can behave unexpectedly.

Grounding helps control the potential of the system relative to earth.

Lightning and switching transients

Surge protective devices need correctly coordinated connections to the earthing system.

The effectiveness of an SPD is affected by the installation's earthing arrangement and conductor layout. Different earthing arrangements require different SPD configurations.

Insulation stress

System grounding can help limit abnormal voltages appearing across insulation.

Fault detection

Protective relays, RCDs, insulation monitoring equipment and overcurrent devices all depend, in different ways, on predictable electrical conditions.

EMC and electronic equipment

Modern installations contain:

variable-speed drives;
PLCs;
computers;
communications systems;
network equipment;
inverters;
electronic power supplies.

The system earthing arrangement can significantly influence electromagnetic compatibility and electrical noise. IEC-based guidance identifies TN-S arrangements as particularly favourable in installations containing sensitive IT and communication equipment.

So grounding is no longer something we only think about when installing an earth electrode.

It is part of power quality, EMC, surge protection and system reliability.

Functional earthing adds another layer

There is also something called functional earthing.

This is earthing provided primarily for the correct operation of equipment rather than directly for electric shock protection.

Examples may include:

EMC control;
signal reference systems;
electronic equipment;
communications;
screening;
instrumentation.

This again demonstrates why the words earth and ground should never automatically be assumed to mean only “safety earth”.

The purpose of the connection matters.

The protective earth is not a spare neutral

This principle needs to be repeated throughout our industry.

Neutral carries operating current.

PE carries fault current when required for protection.

Under normal conditions, the protective conductor should not become an alternative path for load current.

A poor neutral arrangement or an incorrectly installed neutral-earth bridge can place unwanted current onto:

equipment enclosures;
cable armour;
pipework;
structural metal;
bonding conductors;
communication screens.

The installation may appear to operate normally while an extremely important protection principle has been compromised.

That is why neutral-earth relationships are designed — not improvised.

Earth resistance alone does not prove that an installation is safe

Another common mistake is believing:

“The earth reading is good, therefore the installation is safe.”

Not necessarily.

An electrician may need to consider the entire protection system, including:

earth continuity;
protective bonding;
earth electrode resistance where applicable;
fault-loop impedance;
insulation resistance;
RCD operation;
protective-device operating characteristics;
conductor sizing;
neutral integrity;
supply earthing arrangement;
alternate sources;
disconnection times.

The Electrical Installation Regulations require electrical installations to be designed and installed in accordance with the applicable incorporated health and safety standards, and a registered person may issue the CoC only after inspection and testing have established the required compliance.

Testing therefore should not become a collection of numbers.

The Registered Person must understand what each test is proving.

Four systems working together

A good way to remember the entire concept is this:

1. Grounding gives the electrical system a reference.

It determines how the source behaves relative to earth.

2. Earthing gives exposed conductive parts a protective connection.

It prevents accessible metalwork from simply remaining dangerously energised after a fault.

3. Bonding controls potential differences.

It helps ensure simultaneously accessible conductive parts do not develop hazardous voltage differences between them.

4. Protective devices remove the fault.

Circuit breakers, fuses, RCDs and other devices disconnect or signal the abnormal condition according to the system design.

Remove one part and the others may no longer perform as intended.

A good earth is more than a green-and-yellow wire

This is ultimately the lesson.

Earthing is often treated as one of the simplest parts of an electrical installation:

“Just connect the earth.”

But the deeper you go into electrical protection, the more important the earthing and grounding philosophy becomes.

It determines:

what happens when insulation fails;
how much fault current flows;
which protective device operates;
how quickly it operates;
what voltage appears on accessible metal;
how an inverter behaves when it islands;
how a generator neutral must be treated;
how surge protection functions;
how electronic equipment reacts;
and ultimately whether a fault becomes dangerous to a person.

Earthing protects people. Grounding controls the system. Together they make protection possible.

The statement is deliberately simplified, because both processes contribute to both objectives.

But it is a useful way to start thinking about them.

Protective earthing is fundamentally concerned with making exposed conductive parts safe during a fault.

System grounding establishes how the electrical source and network relate to earth and therefore determines how the system behaves when faults and abnormal voltages occur.

Bonding keeps dangerous potential differences under control.

Protective devices finish the job by disconnecting the fault.

None should be designed in isolation.

Because electrical safety is not about giving fault current somewhere to “disappear”.

It is about creating a predictable, deliberate and measurable fault path so that the electrical installation can protect the person before the person becomes part of that path.

That is the real purpose of a correctly engineered earthing and grounding system. ⚡

Technical note

The terms earthing and grounding are used differently internationally and are sometimes direct synonyms. In South African and IEC-based practice, earthing is generally the familiar terminology. For training purposes, the distinction in this article is between protective earthing of exposed conductive parts and system/source grounding or system earthing. Actual installations must always be assessed against the current applicable edition and amendments of SANS 10142-1, the supply authority's requirements, manufacturer instructions and any other applicable standards.

Sources used for this article

IEC 60050-195 — International Electrotechnical Vocabulary: Earthing and protection against electric shock; IEC 60364-5-54 — Earthing arrangements and protective conductors; Schneider Electric Electrical Installation Guide — TN, TT and IT system principles and protective earthing; ECA(SA) technical guidance on earthing, bonding and neutral-earth bonding; and the South African Electrical Installation Regulations, 2009.
