Test 11 & 12: Earth Leakage (RCD) Operation & Manual Test — Verifying Automatic AND Functional Protection

---

Introduction

Up to now, we’ve confirmed:

• Installation integrity
• Protection operation
• Fault energy control
• Supply condition
• Insulation integrity
• Voltage performance

Now we arrive at the test that protects human life directly:

👉 Earth Leakage (RCD)

But here’s where many electricians get it wrong:

👉 There are TWO separate tests
👉 And one does NOT replace the other

---

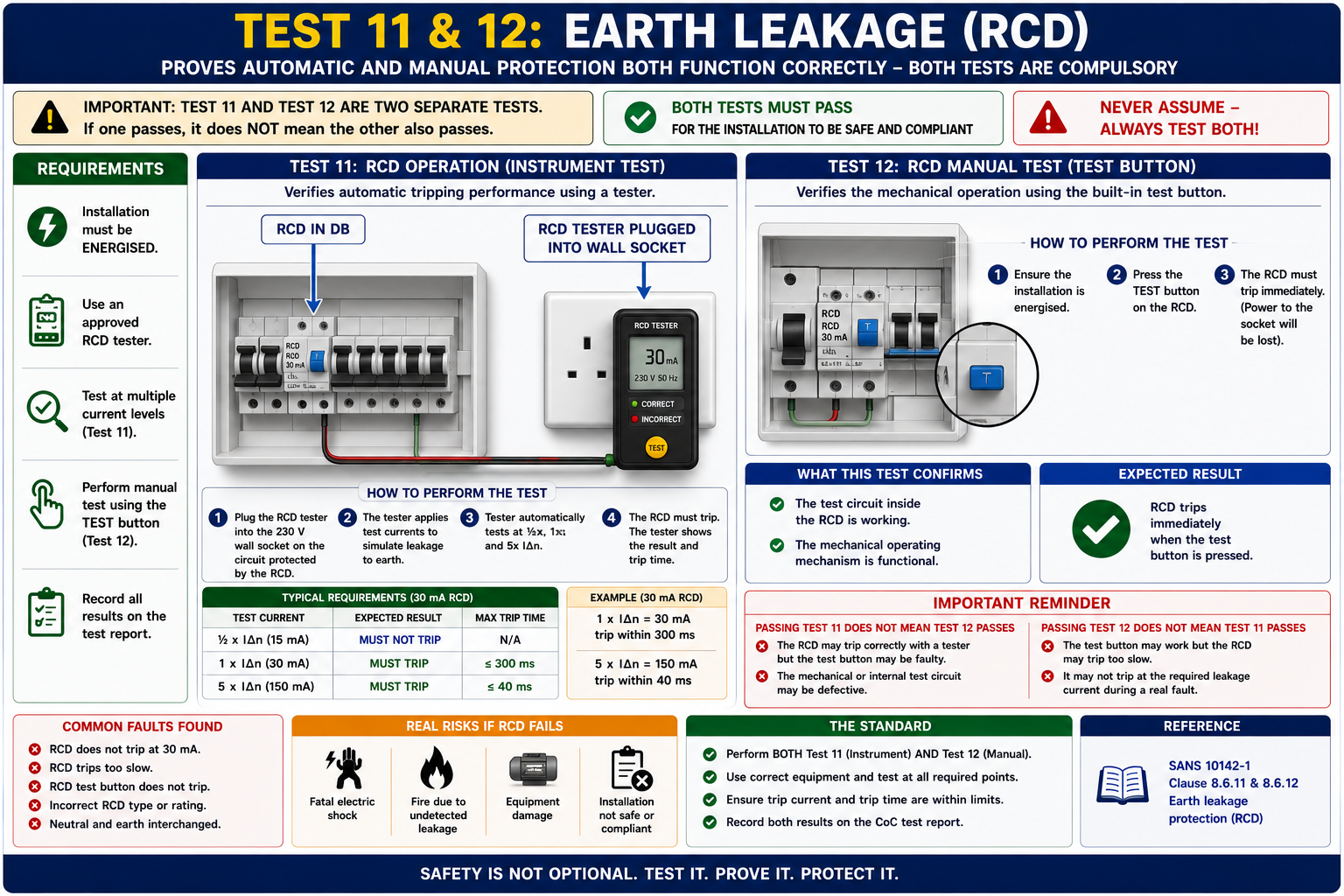

🧠 1. Foundation (Understanding): What Are We Actually Testing?

⚡ Test 11: RCD Instrument Test

👉 Verifies automatic tripping performance
👉 Uses a tester to simulate leakage current

---

⚡ Test 12: RCD Manual Test (Test Button)

👉 Verifies mechanical operation of the device
👉 Uses the built-in test button

---

🔑 Critical Understanding

👉 A pass on Test 11 does NOT mean Test 12 passes
👉 A pass on Test 12 does NOT mean Test 11 passes

⚠️ BOTH TESTS ARE COMPULSORY

---

🛠️ 2. Application (Doing): How Must the Tests Be Done?

---

⚡ Test 11 — Instrument (RCD Tester)

🔧 Method:

• Installation energised
• Use RCD tester
• Apply:
  • ½ × IΔn → Must NOT trip
  • 1 × IΔn → Must trip
  • 5 × IΔn → Must trip quickly
• Measure trip time

---

🎯 Typical Requirements (30 mA RCD)

• 1 × IΔn (30 mA) → ≤ 300 ms
• 5 × IΔn (150 mA) → ≤ 40 ms

---

⚡ Test 12 — Manual Test Button

🔧 Method:

• Press TEST button on RCD
• Device must trip immediately

---

⚠️ What This Test Does

👉 Confirms internal test circuit works
👉 Confirms mechanical operation

---

⚡ 3. Mastery (Owning Responsibility): Why Both Tests Matter

---

⚠️ Scenario 1:

👉 RCD passes instrument test
❌ But test button does NOT work

➡️ Internal fault or mechanism issue

---

⚠️ Scenario 2:

👉 Test button works
❌ But RCD fails trip time test

➡️ Dangerous delay in protection

---

🔍 The Professional Must Ask:

👉 Is the RCD tripping at the correct current?
👉 Is it tripping fast enough?
👉 Does the test button operate correctly?
👉 Are all circuits protected?
👉 Is testing done at multiple points?

---

⚠️ Real Risks

If either test is ignored:

🚨 Shock protection may fail
🚨 Device may not operate under real fault
🚨 Life-threatening situation possible

---

⚠️ Common Mistakes

• Only pressing the test button
• Only using the tester
• Not measuring trip time
• Assuming one test is enough
• Not recording both results

---

💡 Final Thought

Test 11 & 12 are not optional.

👉 They are two sides of the same safety system

At TDMI Training, we emphasise:

👉 Automatic performance AND mechanical operation must BOTH be proven

---

✅ The Standard

✔ Perform instrument test (Test 11)
✔ Perform manual test (Test 12)
✔ Confirm trip current
✔ Confirm trip time
✔ Confirm mechanical operation
✔ Record both results

---

👉 Because when a fault occurs…
there is no second chance.
