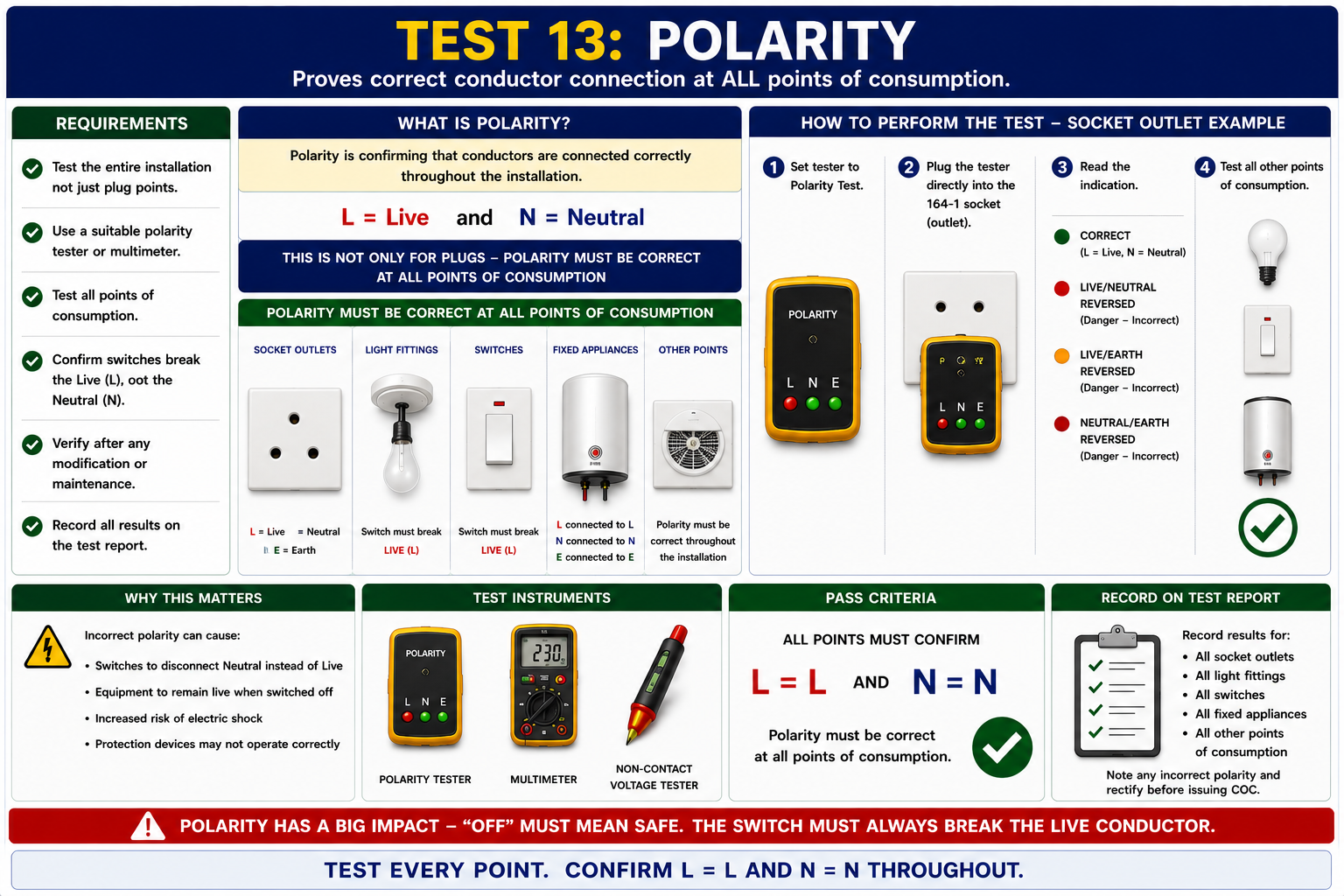

Test 13: Polarity — Proving Correct Connection at ALL Points of Consumption

---

Introduction

Up to now, we’ve verified:

• Installation integrity
• Protection operation
• Fault handling
• Supply conditions
• Voltage performance
• Life protection (RCD)

Now we focus on something that seems simple…

👉 But can become dangerous if ignored

👉 Polarity

---

🧠 1. Foundation (Understanding): What Are We Actually Testing?

This test confirms:

👉 That conductors are connected correctly throughout the installation

---

⚡ What Is Polarity?

👉 Ensuring that:

• Live (L) is connected to Live (L)
• Neutral (N) is connected to Neutral (N)

---

🔑 Critical Message

👉 This is NOT only for plug points

⚠️ Polarity must be correct at:

• Socket outlets
• Light fittings
• Switches
• Distribution board circuits
• Fixed appliances
• ALL points of consumption

---

⚠️ Why This Matters

If polarity is incorrect:

🚨 Switches may disconnect neutral instead of live
🚨 Equipment may remain live when switched off
🚨 Shock risk increases
🚨 Protection devices may not function correctly

---

🛠️ 2. Application (Doing): How Must the Test Be Done?

⚠️ IMPORTANT

👉 Test must confirm correct polarity across the entire installation

---

🔧 Correct Method

For Socket Outlets:

👉 Use polarity tester or meter
👉 Confirm:

• L = Live
• N = Neutral
• E = Earth

---

For Lighting Circuits:

👉 Confirm:

• Switch breaks Live (L)
• Not Neutral

---

For Fixed Equipment:

👉 Confirm correct termination:

• L to L
• N to N

---

⚡ Instruments Used

👉 Multimeter
👉 Polarity tester
👉 Continuity tester (where required)

---

🎯 PASS REQUIREMENT

👉 All points must confirm:

✅ L = L and N = N

---

⚡ 3. Mastery (Owning Responsibility): What Are the Limitations?

This is where professionals stand out.

---

🔍 The Professional Must Ask:

👉 Are ALL circuits tested—not just plugs?
👉 Are switches breaking live conductors?
👉 Has any alteration been done to the installation?
👉 Are there mixed wiring colours or legacy systems?
👉 Is polarity consistent throughout?

---

⚠️ Real Risks

Incorrect polarity can lead to:

🚨 Live parts exposed even when “off”
🚨 Increased shock hazard
🚨 Faulty operation of equipment
🚨 False sense of safety

---

⚠️ Common Mistakes

• Only testing plug points
• Ignoring lighting circuits
• Not verifying switch operation
• Assuming correct wiring
• Not testing after modifications

---

💡 Final Thought

Test 13 is simple…

But its impact is massive.

Because “off” must mean:

👉 SAFE

At TDMI Training, we emphasise:

👉 Polarity is not a quick check
👉 It is a full installation verification

---

✅ The Standard

✔ Test ALL points of consumption
✔ Confirm L = L and N = N
✔ Verify switches break live
✔ Check after any modification
✔ Record results

---

👉 Because safety is not about assumption…
it’s about verification.
