Test 14: Phase Rotation — Identifying System Direction (3-Phase Only)

---

Introduction

Up to now, we’ve verified:

• Installation integrity
• Protection operation
• Fault handling
• Supply condition
• Voltage performance
• Life protection (RCD)
• Polarity

Now we move to a test that is often misunderstood:

👉 Phase Rotation

---

⚠️ IMPORTANT

👉 This test applies to 3-phase systems ONLY
👉 Not applicable to single-phase installations

---

🧠 1. Foundation (Understanding): What Are We Actually Testing?

This test checks:

👉 The direction of rotation of the 3-phase supply

---

⚡ What Is Phase Rotation?

👉 The order in which the phases reach peak voltage:

• L1 → L2 → L3

This determines:

👉 The direction of rotation (clockwise or anti-clockwise)

---

🔑 Critical Understanding

👉 There is NO right or wrong rotation

---

⚠️ What We Are Doing:

👉 We are IDENTIFYING the direction of the system
👉 Not judging it

---

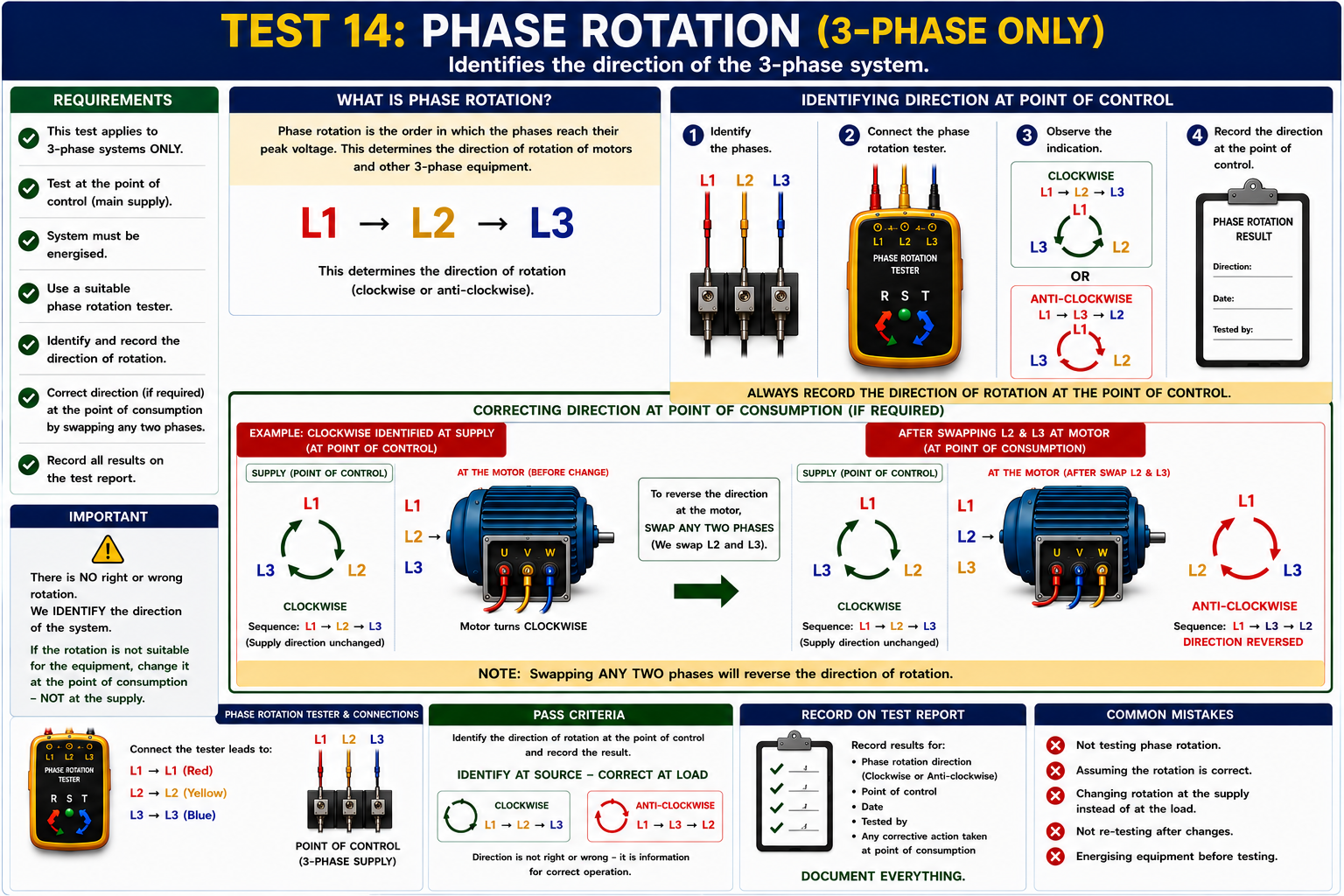

🛠️ 2. Application (Doing): How Must the Test Be Done?

⚠️ IMPORTANT

👉 Test is done at the point of control (main supply)
👉 System must be energised

---

🔧 Correct Method

1. Identify:
   • L1
   • L2
   • L3
2. Connect phase rotation tester:
   • L1 → L1
   • L2 → L2
   • L3 → L3
3. Observe indication:

👉 Clockwise OR Anti-clockwise

---

🎯 RESULT

👉 Record the direction of rotation at the point of control

---

⚡ 3. Mastery (Owning Responsibility): What Happens Next?

This is where professionals stand out.

---

🔄 Important Principle

👉 If the rotation is not suitable for the equipment:

👉 You DO NOT change it at the supply

---

✅ You correct it at the point of consumption

👉 By swapping any two phases:

Example:

• Swap L2 and L3 at the motor or equipment terminals

---

⚠️ Why This Matters

Changing rotation at the wrong point can:

🚨 Affect other equipment
🚨 Create inconsistent systems
🚨 Cause faults elsewhere

---

🔍 The Professional Must Ask:

👉 Where is the rotation measured? (Point of control)
👉 What equipment is connected?
👉 Does the equipment require a specific direction?
👉 Where should correction be done?

---

⚠️ Real Risks

If not handled correctly:

🚨 Motors run in wrong direction
🚨 Pumps operate incorrectly
🚨 Mechanical damage occurs
🚨 System inconsistency develops

---

⚠️ Common Mistakes

• Thinking there is a “correct” rotation
• Changing rotation at the supply
• Not recording rotation direction
• Not testing before energising equipment
• Not correcting at point of consumption

---

💡 Final Thought

Test 14 is not about right or wrong…

👉 It’s about identification and correct application

At TDMI Training, we emphasise:

👉 Measure at the source
👉 Correct at the load

---

✅ The Standard

✔ 3-phase systems only
✔ Test at point of control
✔ Identify rotation direction
✔ Record the result
✔ Correct at point of consumption if required

---

👉 Because in 3-phase systems…
control comes from understanding.
